Weld-on Hubs

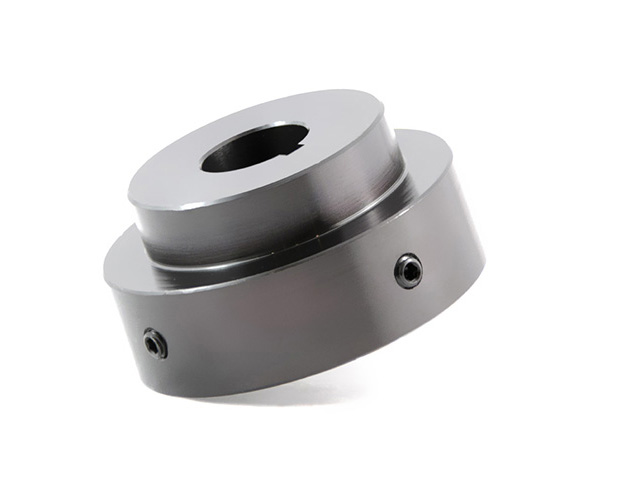

Y Weld-On Hub

Description

Download data sheet

Model Specifications

Print

Weld-on Hubs

Part No.:
HY087
PLI Hub No.:
Y x 7/8 KW + 2SS
Bore:
0.875
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY100
PLI Hub No.:
Y x 1 KW + 2SS
Bore:
1
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY068
PLI Hub No.:
Y x 1 1/16 KW + 2SS
Bore:
1.063
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY112
PLI Hub No.:
Y x 1 1/8 KW + 2SS
Bore:
1.125
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY125
PLI Hub No.:
Y x 1 1/4 KW + 2SS
Bore:
1.25
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY137
PLI Hub No.:
Y x 1 3/8 KW + 2SS
Bore:
1.375
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY143
PLI Hub No.:
Y x 1 7/16 KW + 2SS
Bore:
1.438
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY150
PLI Hub No.:
Y x 1 1/2 KW + 2SS
Bore:
1.5
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY162
PLI Hub No.:
Y x 1 5/8 KW + 2SS
Bore:
1.625
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY175
PLI Hub No.:
Y x 1 3/4 KW + 2SS
Bore:
1.75
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY187
PLI Hub No.:
Y x 1 7/8 KW + 2SS
Bore:
1.875
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY193
PLI Hub No.:
Y x 1 15/16 KW + 2SS
Bore:
1.938
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
Part No.:
HY200
PLI Hub No.:
Y x 2 KW + 2SS
Bore:
2
Dimensions A:
2.75
Dimensions B:
3.75
Dimensions C:
0.688
Dimensions D:
1.188
Dimensions E:
1.875
