Model Specifications
Print

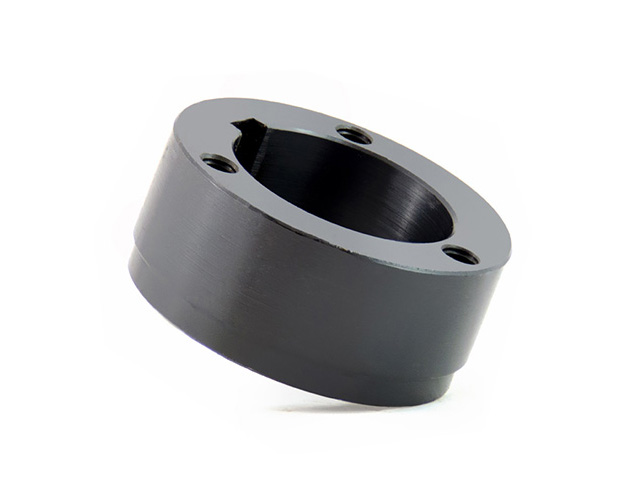

Split Taper Weld-on Hubs
|
Part No.:
HHH1 |
PLI Hub No.:
H-H1 |
Dimensions OD:
2.5 |
Dimensions A:
0.174 |
Dimensions B:
1.621 |
Dimensions C:
2.375 |
Dimensions K:
- |
Dimensions V:
2 |
Dimensions W:
- |
Dimensions X:
0.875 |
Dimensions a:
- |
Dimensions d:
0.875 |
Dimensions no.:
2 |
Dimensions size:
1/4-20 |
Dimensions wt. lbs.:
0.65 |
|
|
Part No.:
HHP1 |
PLI Hub No.:
H-P1 |
Dimensions OD:
3 |
Dimensions A:
0.292 |
Dimensions B:
1.938 |
Dimensions C:
2.875 |
Dimensions K:
1.094 |
Dimensions V:
2.563 |
Dimensions W:
0.375 |
Dimensions X:
1.313 |
Dimensions a:
60 |
Dimensions d:
0.625 |
Dimensions no.:
3 |
Dimensions size:
5/16-18 |
Dimensions wt. lbs.:
1.45 |
|
|
Part No.:
HHQ1 |
PLI Hub No.:
H-Q1 |
Dimensions OD:
4.5 |
Dimensions A:
0.709 |
Dimensions B:
2.875 |
Dimensions C:
4.375 |
Dimensions K:
1.563 |
Dimensions V:
3.375 |
Dimensions W:
0.5 |
Dimensions X:
1.75 |
Dimensions a:
60 |
Dimensions d:
0.875 |
Dimensions no.:
3 |
Dimensions size:
3/8-16 |
Dimensions wt. lbs.:
4.45 |
|
|
Part No.:
HHR1 |
PLI Hub No.:
H-R1 |
Dimensions OD:
5.75 |
Dimensions A:
0.709 |
Dimensions B:
4 |
Dimensions C:
5.625 |
Dimensions K:
2.188 |
Dimensions V:
4.625 |
Dimensions W:
0.75 |
Dimensions X:
2 |
Dimensions a:
60 |
Dimensions d:
1.125 |
Dimensions no.:
3 |
Dimensions size:
3/8-16 |
Dimensions wt. lbs.:
7.5 |
|
|
Part No.:
HHS1 |
PLI Hub No.:
H-S1 |
Dimensions OD:
6.75 |
Dimensions A:
0.946 |
Dimensions B:
4.625 |
Dimensions C:
6.5 |
Dimensions K:
2.563 |
Dimensions V:
5.375 |
Dimensions W:
0.75 |
Dimensions X:
3.313 |
Dimensions a:
60 |
Dimensions d:
1.625 |
Dimensions no.:
3 |
Dimensions size:
1/2-13 |
Dimensions wt. lbs.:
17.25 |
