Double Sprockets Chain 100

100-2 Double Row B Type Roller Chain Sprockets

Description

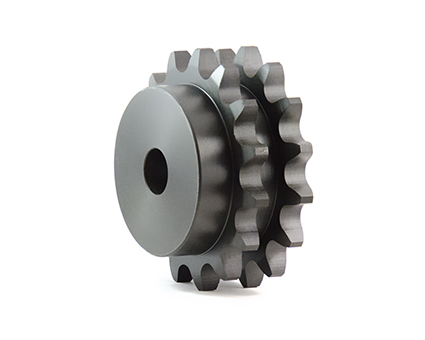

DOUBLE ROW B TYPE SPROCKETS

All PLI sprockets are manufactured using the ISO 9001 quality management system. Double row B type sprockets have a stock bore and usually require some altering before installation. Double row B Type sprockets are to be installed when using PLI Double row roller chains. These sprockets have a hub on one side. The teeth will be hardened on sprockets with 21 or fewer teeth.

Download data sheet

Model Specifications

Print

Double Sprockets Chain 100

Part No.:
100D12
PLI Sprocket No.:
D100B12H
No. of Teeth:
12
Diameters Outside:
5.42
Diameters Pitch:
4.83
Bore Stock:
1.125
Bore Max:
2.25
Hub Dia.:
3.375
Hub L.T.B.:
2.875
Wgt. Lbs.:
9.3
Part No.:
100D13
PLI Sprocket No.:
D100B13H
No. of Teeth:
13
Diameters Outside:
5.82
Diameters Pitch:
5.223
Bore Stock:
1.125
Bore Max:
2.5
Hub Dia.:
3.813
Hub L.T.B.:
2.875
Wgt. Lbs.:
11.4
Part No.:
100D14
PLI Sprocket No.:
D100B14H
No. of Teeth:
14
Diameters Outside:
6.23
Diameters Pitch:
5.617
Bore Stock:
1.125
Bore Max:
2.75
Hub Dia.:
4.188
Hub L.T.B.:
2.875
Wgt. Lbs.:
13.6
Part No.:
100D15
PLI Sprocket No.:
D100B15H
No. of Teeth:
15
Diameters Outside:
6.63
Diameters Pitch:
6.012
Bore Stock:
1.25
Bore Max:
3.125
Hub Dia.:
4.625
Hub L.T.B.:
3.125
Wgt. Lbs.:
17.1
Part No.:
100D16
PLI Sprocket No.:
D100B16H
No. of Teeth:
16
Diameters Outside:
7.03
Diameters Pitch:
6.407
Bore Stock:
1.25
Bore Max:
3.313
Hub Dia.:
5
Hub L.T.B.:
3.125
Wgt. Lbs.:
20.1
Part No.:
100D17
PLI Sprocket No.:
D100B17H
No. of Teeth:
17
Diameters Outside:
7.44
Diameters Pitch:
6.803
Bore Stock:
1.25
Bore Max:
3.5
Hub Dia.:
5.25
Hub L.T.B.:
3.125
Wgt. Lbs.:
23.1
Part No.:
100D18
PLI Sprocket No.:
D100B18H
No. of Teeth:
18
Diameters Outside:
7.84
Diameters Pitch:
7.198
Bore Stock:
1.25
Bore Max:
3.5
Hub Dia.:
5.25
Hub L.T.B.:
3.125
Wgt. Lbs.:
25.4
Part No.:
100D19
PLI Sprocket No.:
D100B19H
No. of Teeth:
19
Diameters Outside:
8.24
Diameters Pitch:
7.595
Bore Stock:
1.25
Bore Max:
3.75
Hub Dia.:
5.5
Hub L.T.B.:
3.375
Wgt. Lbs.:
29.6
Part No.:
100D20
PLI Sprocket No.:
D100B20H
No. of Teeth:
20
Diameters Outside:
8.64
Diameters Pitch:
7.991
Bore Stock:
1.25
Bore Max:
3.75
Hub Dia.:
5.5
Hub L.T.B.:
3.375
Wgt. Lbs.:
32.4
Part No.:
100D21
PLI Sprocket No.:
D100B21H
No. of Teeth:
21
Diameters Outside:
9.04
Diameters Pitch:
8.387
Bore Stock:
1.25
Bore Max:
3.75
Hub Dia.:
5.5
Hub L.T.B.:
3.375
Wgt. Lbs.:
35.3
Part No.:
100D22
PLI Sprocket No.:
D100B22
No. of Teeth:
22
Diameters Outside:
9.44
Diameters Pitch:
8.783
Bore Stock:
1.25
Bore Max:
3.75
Hub Dia.:
5.5
Hub L.T.B.:
3.375
Wgt. Lbs.:
38.4
Part No.:
100D23
PLI Sprocket No.:
D100B23
No. of Teeth:
23
Diameters Outside:
9.84
Diameters Pitch:
9.18
Bore Stock:
1.25
Bore Max:
3.75
Hub Dia.:
5.5
Hub L.T.B.:
3.375
Wgt. Lbs.:
41.3
Part No.:
100D24
PLI Sprocket No.:
D100B24
No. of Teeth:
24
Diameters Outside:
10.25
Diameters Pitch:
9.577
Bore Stock:
1.25
Bore Max:
3.75
Hub Dia.:
5.75
Hub L.T.B.:
3.375
Wgt. Lbs.:
45.1
Part No.:
100D25
PLI Sprocket No.:
D100B25
No. of Teeth:
25
Diameters Outside:
10.65
Diameters Pitch:
9.973
Bore Stock:
1.25
Bore Max:
3.75
Hub Dia.:
5.75
Hub L.T.B.:
3.375
Wgt. Lbs.:
48.5
Part No.:
100D26
PLI Sprocket No.:
D100B26
No. of Teeth:
26
Diameters Outside:
11.05
Diameters Pitch:
10.37
Bore Stock:
1.5
Bore Max:
3.75
Hub Dia.:
5.75
Hub L.T.B.:
3.375
Wgt. Lbs.:
51.5
Part No.:
100D30
PLI Sprocket No.:
D100B30
No. of Teeth:
30
Diameters Outside:
12.64
Diameters Pitch:
11.958
Bore Stock:
1.5
Bore Max:
3.75
Hub Dia.:
5.75
Hub L.T.B.:
3.375
Wgt. Lbs.:
65

*Has recessed groove in hub for chain clearance. 1 1/4" Pitch, Nominal = 0.669", Dimension T for #D100 = 2.077", Maximun bores shown will accommodate standard keyseat & setscrew over Keyseat. Slightly larger bores are possible with no keyseat, shallow k
