Model Specifications
Print

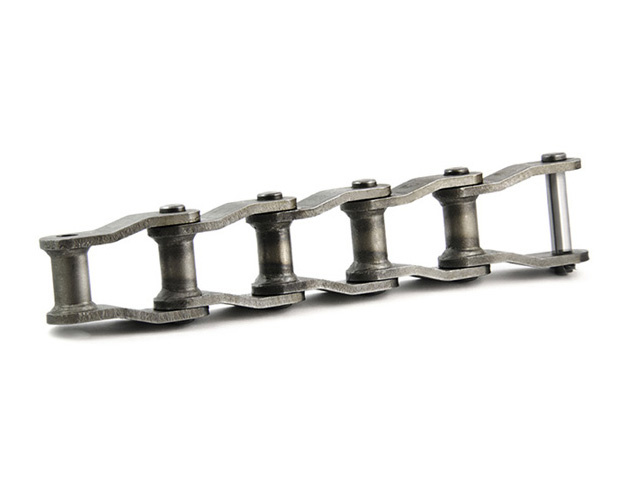

Welded Steel Conveyor Chains
| CCWR78 | WR78 | 2.609 | 46 | 1.25 | 0.25 | 0.5 | 3 | 2 | 1 | 4.2 | 29800 | |
| CCWH78 | WH78 | 2.609 | 46 | 1.25 | 0.25 | 0.5 | 3 | 2 | 1 | 4.2 | 33000 | |
| CCWR78XHD | WR78XHD | 2.64 | 46 | 1.25 | 0.375 | 0.563 | 3.281 | 2 | 1 | 6.3 | 32700 | |
| CCWR82 | WR82 | 3.075 | 39 | 1.25 | 0.25 | 0.563 | 3.313 | 2.25 | 1.375 | 4.7 | 32780 | |
| CCWH82 | WH82 | 3.075 | 39 | 1.25 | 0.25 | 0.563 | 3.313 | 2.25 | 1.375 | 4.7 | 36000 | |
| CCWR82XHD | WR82XHD | 3.075 | 39 | 1.5 | 0.375 | 0.75 | 3.813 | 2.375 | 1.125 | 8.5 | 50400 | |
| CCWH82XHD | WH82XHD | 3.075 | 39 | 1.5 | 0.375 | 0.75 | 3.938 | 2.375 | 1.375 | 8.5 | 57000 | |
| CCWR124 | WR124 | 4 | 30 | 1.5 | 0.375 | 0.75 | 4.25 | 2.813 | 1.5 | 8 | 50400 | |
| CCWH124 | WH124 | 4 | 30 | 1.5 | 0.375 | 0.75 | 4.25 | 2.813 | 1.5 | 8 | 57000 | |
| CCWH124XHD | WH124XHD | 4.05 | 30 | 2 | 0.5 | 1 | 4.875 | 3 | 1.5 | 14.5 | 122000 | |
| CCWR111 | WR111 | 4.76 | 25 | 1.75 | 0.375 | 0.75 | 4.813 | 3.375 | 1.875 | 8.6 | 50400 | |
| CCWR106 | WR106 | 6 | 20 | 1.5 | 0.375 | 0.75 | 4.25 | 2.813 | 1.5 | 6.5 | 50400 | |
| CCWRC131 | WRC131 | 6.05 | 20 | 2 | 0.5 | 1 | 6.25 | 4.422 | 3.125 | 13.9 | 85500 |
