Conveyor 81X 81XH 81XHH 81XRT 2.609" Pitch

81X Converyor Chain

Description

Download data sheet

Model Specifications

Print

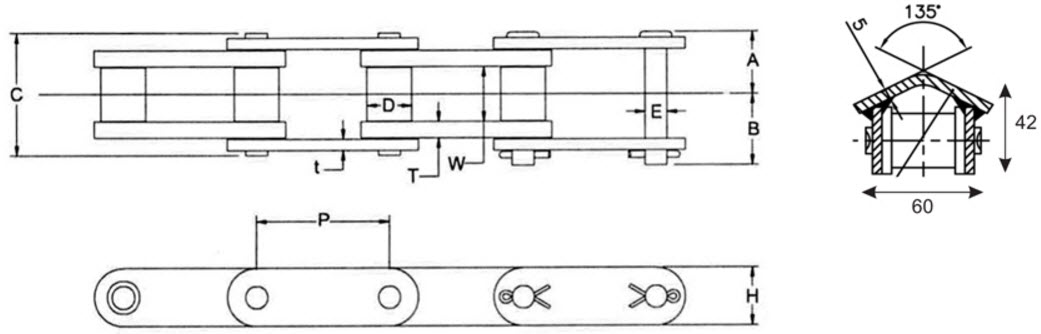

Part No.PLI Chain No.Pitch PRoller Dia. DInner Plates WPin Dimensions EPin Dimensions CPlate Dimensions HPlate Dimensions APlate Dimensions BPlate Dimensions tPlate Dimensions TNo. Links in 10 feetAverage wgt. Per foot lbs.Average Ultimate Strength lbs.Max. Allow. Load.
Part No. : CC81XPLI Chain No. : 81XPitch P : 2.609Roller Dia. D : 0.906Inner Plates W : 1.06Pin Dimensions E : 0.437Pin Dimensions C : 1.929Plate Dimensions H : 1.125Plate Dimensions A : 0.975Plate Dimensions B : 1.16Plate Dimensions t : 0.157Plate Dimensions T : 0.157No. Links in 10 feet : 46Average wgt. Per foot lbs. : 2.5Average Ultimate Strength lbs. : 24200Max. Allow. Load. : 3000Add to cart
Part No. : CC81XHPLI Chain No. : 81XHPitch P : 2.609Roller Dia. D : 0.906Inner Plates W : 1.06Pin Dimensions E : 0.437Pin Dimensions C : 2.389Plate Dimensions H : 1.25Plate Dimensions A : 1.196Plate Dimensions B : 1.381Plate Dimensions t : 0.219Plate Dimensions T : 0.313No. Links in 10 feet : 46Average wgt. Per foot lbs. : 4.12Average Ultimate Strength lbs. : 34500Max. Allow. Load. : 3700Add to cart
Part No. : CC81XHHPLI Chain No. : 81XHHPitch P : 2.609Roller Dia. D : 0.906Inner Plates W : 1.06Pin Dimensions E : 0.437Pin Dimensions C : 2.582Plate Dimensions H : 1.25Plate Dimensions A : 1.289Plate Dimensions B : 1.474Plate Dimensions t : 0.313Plate Dimensions T : 0.313No. Links in 10 feet : 46Average wgt. Per foot lbs. : 4.6Average Ultimate Strength lbs. : 43400Max. Allow. Load. : 3700Add to cart
Part No. : CC81XSPLI Chain No. : 81X STAINLESS STEELPitch P : 2.609Roller Dia. D : 0.906Inner Plates W : 1.06Pin Dimensions E : 0.437Pin Dimensions C : 1.929Plate Dimensions H : 1.125Plate Dimensions A : 0.975Plate Dimensions B : 1.16Plate Dimensions t : 0.157Plate Dimensions T : 0.157No. Links in 10 feet : 46Average wgt. Per foot lbs. : 2.5Average Ultimate Strength lbs. : Max. Allow. Load. : Add to cart
Part No. : CC81XHSPLI Chain No. : 81XH STAINLESS STEELPitch P : 2.609Roller Dia. D : 0.906Inner Plates W : 1.06Pin Dimensions E : 0.437Pin Dimensions C : 2.389Plate Dimensions H : 1.25Plate Dimensions A : 1.196Plate Dimensions B : 1.381Plate Dimensions t : 0.219Plate Dimensions T : 0.313No. Links in 10 feet : 46Average wgt. Per foot lbs. : 4.12Average Ultimate Strength lbs. : Max. Allow. Load. : Add to cart
Part No. : CC81XWTPLI Chain No. : 81X ROOF TOPPitch P : 2.609Roller Dia. D : 0.906Inner Plates W : 1.06Pin Dimensions E : 0.437Pin Dimensions C : 1.929Plate Dimensions H : 1.125Plate Dimensions A : 0.975Plate Dimensions B : 1.16Plate Dimensions t : 0.157Plate Dimensions T : 0.157No. Links in 10 feet : 46Average wgt. Per foot lbs. : 4.25Average Ultimate Strength lbs. : 24200Max. Allow. Load. : 3000Add to cart
