Model Specifications
Print
8" Pitch Conveyor Chain
|
Part No.:
CC3939 |
PLI Chain No.:
3939-B4 |

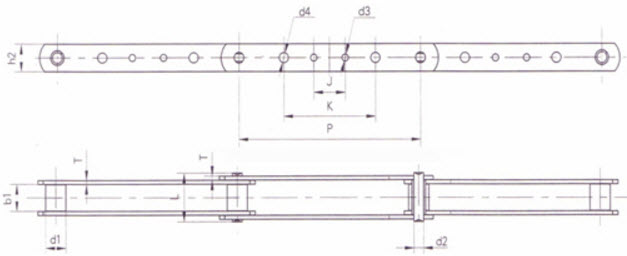

Pitch P:
8 |
Roller Dia. d1:
0.906 |
Inner Plates b1:
1.063 |
Pin Dimensions d2:
0.437 |
Pin Dimensions L:
1.929 |
Plate Dimensions h2:
1.125 |
Plate Dimensions d3:
0.283 |
Plate Dimensions d4:
0.283 |
Plate Dimensions J:
1.5 |
Plate Dimensions K:
4 |
Plate Dimensions T:
0.157 |
No. Links in 10 feet:
15 |
Average Wgt. Per Foot Lbs.:
1.6 |
Average Ultimate Strength lbs.:
24000 |
|
|
