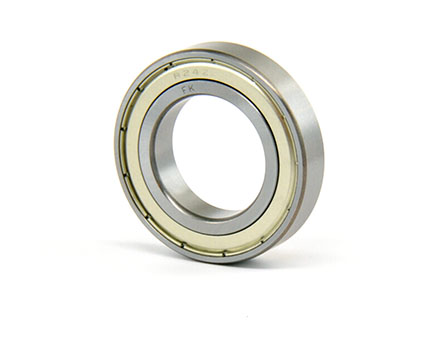

Ball Bearings R Series 2RS/ZZ

Ball Bearing R Series

Description

FK Single Row Deep groove Ball Bearings

FK Deep Groove Ball Bearings provide a simple and versatile solution to many application requirements. These non-separable bearings can handle radial, axial or combined loading provided the axial component of the load is not excessive.

Model Specifications

Print
Part No.SealBore AOutside Diameter BWidth CBasic Load Rating Dynamic CrBasic Load Rating Static CoWgt. (LBS)
Part No. : BR20ZSeal : ZZBore A : 1.25Outside Diameter B : 2.25Width C : 0.38Basic Load Rating Dynamic Cr : 14000Basic Load Rating Static Co : 9300Wgt. (LBS) : 0.21Add to cart
Part No. : BR24ZSeal : ZZBore A : 1.5Outside Diameter B : 2.63Width C : 0.44Basic Load Rating Dynamic Cr : 16800Basic Load Rating Static Co : 11800Wgt. (LBS) : 0.31Add to cart
Part No. : BR4Seal : 2RSBore A : 0.25Outside Diameter B : 0.63Width C : 0.2Basic Load Rating Dynamic Cr : 1480Basic Load Rating Static Co : 620Wgt. (LBS) : 0.01Add to cart
Part No. : BR4ASeal : 2RSBore A : 0.25Outside Diameter B : 0.75Width C : 0.28Basic Load Rating Dynamic Cr : 2810Basic Load Rating Static Co : 1160Wgt. (LBS) : 0.02Add to cart
Part No. : BR8Seal : 2RSBore A : 0.5Outside Diameter B : 1.13Width C : 0.31Basic Load Rating Dynamic Cr : 5070Basic Load Rating Static Co : 2400Wgt. (LBS) : 0.04Add to cart
Part No. : BR8ZSeal : ZZBore A : 0.5Outside Diameter B : 1.13Width C : 0.25Basic Load Rating Dynamic Cr : 5070Basic Load Rating Static Co : 2400Wgt. (LBS) : 0.04Add to cart

Dimension in (inches)
