Ball Bearings 6000 Metric Series ZZ / 2RS

Ball Bearing 6000 Series

Description

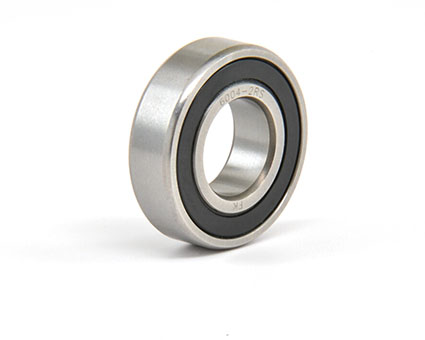

FK Single Row Deep groove Ball Bearings

FK Deep Groove Ball Bearings provide a simple and versatile solution to many application requirements. These non-separable bearings can handle radial, axial or combined loading provided the axial component of the load is not excessive.

Download data sheet

Model Specifications

Print
Part No.SealBore A mmBore A InchOuter Diameter B mmOuter Diameter B InchWidth C mmWidth C InchBasic Load Rating Dynamic CrBasic Load Rating Static CoWgt (Lbs)
Part No. : B6000Seal : 2RSBore A mm : 10Bore A Inch : 0.394Outer Diameter B mm : 26Outer Diameter B Inch : 1.024Width C mm : 8Width C Inch : 0.315Basic Load Rating Dynamic Cr : 3510Basic Load Rating Static Co : 1950Wgt (Lbs) : 0.046Add to cart
Part No. : B6001Seal : 2RSBore A mm : 12Bore A Inch : 0.472Outer Diameter B mm : 28Outer Diameter B Inch : 1.102Width C mm : 8Width C Inch : 0.315Basic Load Rating Dynamic Cr : 3930Basic Load Rating Static Co : 2230Wgt (Lbs) : 0.048Add to cart
Part No. : B6001ZSeal : ZZBore A mm : 12Bore A Inch : 0.472Outer Diameter B mm : 28Outer Diameter B Inch : 1.102Width C mm : 8Width C Inch : 0.315Basic Load Rating Dynamic Cr : 3930Basic Load Rating Static Co : 2230Wgt (Lbs) : 0.048Add to cart
Part No. : B6002Seal : 2RSBore A mm : 15Bore A Inch : 0.591Outer Diameter B mm : 32Outer Diameter B Inch : 1.26Width C mm : 9Width C Inch : 0.354Basic Load Rating Dynamic Cr : 4300Basic Load Rating Static Co : 2510Wgt (Lbs) : 0.057Add to cart
Part No. : B6002ZSeal : ZZBore A mm : 15Bore A Inch : 0.591Outer Diameter B mm : 32Outer Diameter B Inch : 1.26Width C mm : 9Width C Inch : 0.354Basic Load Rating Dynamic Cr : 4300Basic Load Rating Static Co : 2510Wgt (Lbs) : 0.057Add to cart
Part No. : B6003Seal : 2RSBore A mm : 17Bore A Inch : 0.669Outer Diameter B mm : 35Outer Diameter B Inch : 1.378Width C mm : 10Width C Inch : 0.394Basic Load Rating Dynamic Cr : 5230Basic Load Rating Static Co : 3040Wgt (Lbs) : 0.079Add to cart
Part No. : B6003ZSeal : ZZBore A mm : 17Bore A Inch : 0.669Outer Diameter B mm : 35Outer Diameter B Inch : 1.378Width C mm : 10Width C Inch : 0.394Basic Load Rating Dynamic Cr : 5230Basic Load Rating Static Co : 3040Wgt (Lbs) : 0.079Add to cart
Part No. : B6004Seal : 2RSBore A mm : 20Bore A Inch : 0.787Outer Diameter B mm : 42Outer Diameter B Inch : 1.654Width C mm : 12Width C Inch : 0.472Basic Load Rating Dynamic Cr : 7210Basic Load Rating Static Co : 4460Wgt (Lbs) : 0.152Add to cart
Part No. : B6004ZSeal : ZZBore A mm : 20Bore A Inch : 0.787Outer Diameter B mm : 42Outer Diameter B Inch : 1.654Width C mm : 12Width C Inch : 0.472Basic Load Rating Dynamic Cr : 7210Basic Load Rating Static Co : 4460Wgt (Lbs) : 0.152Add to cart
Part No. : B60042RKSeal : 2RK-C3 LOW TEMP.Bore A mm : 20Bore A Inch : 0.787Outer Diameter B mm : 42Outer Diameter B Inch : 1.654Width C mm : 12Width C Inch : 0.472Basic Load Rating Dynamic Cr : 7210Basic Load Rating Static Co : 4460Wgt (Lbs) : 0.152Add to cart
Part No. : B6005Seal : 2RSBore A mm : 25Bore A Inch : 0.984Outer Diameter B mm : 47Outer Diameter B Inch : 1.85Width C mm : 12Width C Inch : 0.472Basic Load Rating Dynamic Cr : 7740Basic Load Rating Static Co : 4960Wgt (Lbs) : 0.165Add to cart
Part No. : B6005ZSeal : ZZBore A mm : 25Bore A Inch : 0.984Outer Diameter B mm : 47Outer Diameter B Inch : 1.85Width C mm : 12Width C Inch : 0.472Basic Load Rating Dynamic Cr : 7740Basic Load Rating Static Co : 4960Wgt (Lbs) : 0.165Add to cart
Part No. : B60052RKSeal : 2RK-C3 LOW TEMP.Bore A mm : 25Bore A Inch : 0.984Outer Diameter B mm : 47Outer Diameter B Inch : 1.85Width C mm : 12Width C Inch : 0.472Basic Load Rating Dynamic Cr : 7740Basic Load Rating Static Co : 4960Wgt (Lbs) : 0.165Add to cart
Part No. : B6006Seal : 2RSBore A mm : 30Bore A Inch : 1.181Outer Diameter B mm : 55Outer Diameter B Inch : 2.165Width C mm : 13Width C Inch : 0.512Basic Load Rating Dynamic Cr : 10200Basic Load Rating Static Co : 6910Wgt (Lbs) : 0.198Add to cart
Part No. : B6006ZSeal : ZZBore A mm : 30Bore A Inch : 1.181Outer Diameter B mm : 55Outer Diameter B Inch : 2.165Width C mm : 13Width C Inch : 0.512Basic Load Rating Dynamic Cr : 10200Basic Load Rating Static Co : 6910Wgt (Lbs) : 0.198Add to cart
Part No. : B60062RKSeal : 2RK-C3 LOW TEMP.Bore A mm : 30Bore A Inch : 1.181Outer Diameter B mm : 55Outer Diameter B Inch : 2.165Width C mm : 13Width C Inch : 0.512Basic Load Rating Dynamic Cr : 10200Basic Load Rating Static Co : 6910Wgt (Lbs) : 0.198Add to cart
Part No. : B6007Seal : 2RSBore A mm : 35Bore A Inch : 1.378Outer Diameter B mm : 62Outer Diameter B Inch : 2.441Width C mm : 14Width C Inch : 0.551Basic Load Rating Dynamic Cr : 12300Basic Load Rating Static Co : 8530Wgt (Lbs) : 0.353Add to cart
Part No. : B6007ZSeal : ZZBore A mm : 35Bore A Inch : 1.378Outer Diameter B mm : 62Outer Diameter B Inch : 2.441Width C mm : 14Width C Inch : 0.551Basic Load Rating Dynamic Cr : 12300Basic Load Rating Static Co : 8530Wgt (Lbs) : 0.353Add to cart
Part No. : B6008Seal : 2RSBore A mm : 40Bore A Inch : 1.575Outer Diameter B mm : 68Outer Diameter B Inch : 2.677Width C mm : 15Width C Inch : 0.591Basic Load Rating Dynamic Cr : 12900Basic Load Rating Static Co : 9300Wgt (Lbs) : 0.463Add to cart
Part No. : B6008ZSeal : ZZBore A mm : 40Bore A Inch : 1.575Outer Diameter B mm : 68Outer Diameter B Inch : 2.677Width C mm : 15Width C Inch : 0.591Basic Load Rating Dynamic Cr : 12900Basic Load Rating Static Co : 9300Wgt (Lbs) : 0.463Add to cart
Part No. : B6009Seal : 2RSBore A mm : 45Bore A Inch : 1.772Outer Diameter B mm : 75Outer Diameter B Inch : 2.953Width C mm : 16Width C Inch : 0.63Basic Load Rating Dynamic Cr : 15300Basic Load Rating Static Co : 11300Wgt (Lbs) : 0.529Add to cart
Part No. : B6010Seal : 2RSBore A mm : 50Bore A Inch : 1.969Outer Diameter B mm : 80Outer Diameter B Inch : 3.15Width C mm : 16Width C Inch : 0.63Basic Load Rating Dynamic Cr : 16000Basic Load Rating Static Co : 12200Wgt (Lbs) : 0.573Add to cart

Dimension in mm and inches Z = Metal shield one side only. RS = Rubber seal one side only. ZZ = Metal shield on both sides. 2RS = Rubber seals on both sides.
