PLI Chain Coupling

Coupling Chain Only

Description

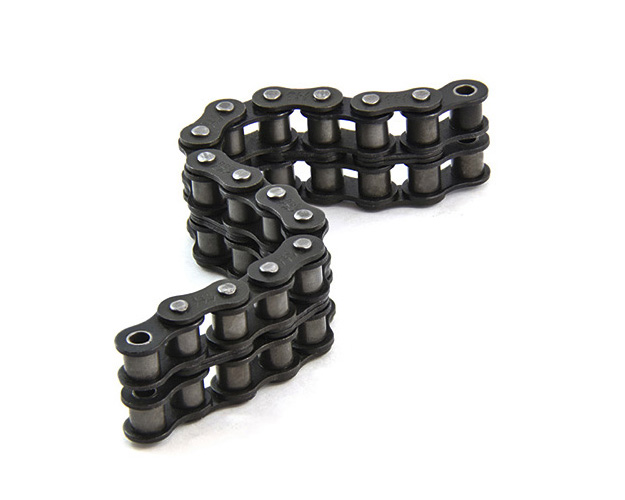

Power-Link Roller Chain Couplings are composed of a double strand roller chain and two sprockets. A cover should be used to assure maximum service life.

Download data sheet

Model Specifications

Print
Part No.Chain Coupling No.Pitch PRoller Diameter DRoller width WPin Diameter dPlate Height HPlate Thickness TOverall Width AOverall Width BTransverse Pitch C
Part No. : CH4012Chain Coupling No. : CH4012Pitch P : 0.5Roller Diameter D : 0.31Roller width W : 0.31Pin Diameter d : 0.16Plate Height H : 0.46Plate Thickness T : 0.06Overall Width A : 0.6Overall Width B : 0.66Transverse Pitch C : 0.57Add to cart
Part No. : CH4016Chain Coupling No. : CH4016Pitch P : 0.5Roller Diameter D : 0.31Roller width W : 0.31Pin Diameter d : 0.16Plate Height H : 0.46Plate Thickness T : 0.06Overall Width A : 0.6Overall Width B : 0.66Transverse Pitch C : 0.57Add to cart
Part No. : CH5016Chain Coupling No. : CH5016Pitch P : 0.63Roller Diameter D : 0.4Roller width W : 0.38Pin Diameter d : 0.2Plate Height H : 0.57Plate Thickness T : 0.08Overall Width A : 0.76Overall Width B : 0.81Transverse Pitch C : 0.71Add to cart
Part No. : CH5018Chain Coupling No. : CH5018Pitch P : 0.63Roller Diameter D : 0.4Roller width W : 0.38Pin Diameter d : 0.2Plate Height H : 0.57Plate Thickness T : 0.08Overall Width A : 0.76Overall Width B : 0.81Transverse Pitch C : 0.71Add to cart
Part No. : CH6018Chain Coupling No. : CH6018Pitch P : 0.75Roller Diameter D : 0.47Roller width W : 0.5Pin Diameter d : 0.23Plate Height H : 0.69Plate Thickness T : 0.09Overall Width A : 0.95Overall Width B : 1.01Transverse Pitch C : 0.9Add to cart
Part No. : CH6020Chain Coupling No. : CH6020Pitch P : 0.75Roller Diameter D : 0.47Roller width W : 0.5Pin Diameter d : 0.23Plate Height H : 0.69Plate Thickness T : 0.09Overall Width A : 0.95Overall Width B : 1.01Transverse Pitch C : 0.9Add to cart
Part No. : CH6022Chain Coupling No. : CH6022Pitch P : 0.75Roller Diameter D : 0.47Roller width W : 0.5Pin Diameter d : 0.23Plate Height H : 0.69Plate Thickness T : 0.09Overall Width A : 0.95Overall Width B : 1.01Transverse Pitch C : 0.9Add to cart
Part No. : CH8018Chain Coupling No. : CH8018Pitch P : 1Roller Diameter D : 0.63Roller width W : 0.63Pin Diameter d : 0.31Plate Height H : 0.92Plate Thickness T : 0.13Overall Width A : 1.21Overall Width B : 1.33Transverse Pitch C : 1.15Add to cart
Part No. : CH8020Chain Coupling No. : CH8020Pitch P : 1Roller Diameter D : 0.63Roller width W : 0.63Pin Diameter d : 0.31Plate Height H : 0.92Plate Thickness T : 0.13Overall Width A : 1.21Overall Width B : 1.33Transverse Pitch C : 1.15Add to cart
Part No. : CH8022Chain Coupling No. : CH8022Pitch P : 1Roller Diameter D : 0.63Roller width W : 0.63Pin Diameter d : 0.31Plate Height H : 0.92Plate Thickness T : 0.13Overall Width A : 1.21Overall Width B : 1.33Transverse Pitch C : 1.15Add to cart
