Type QD Sprockets 120 Chain

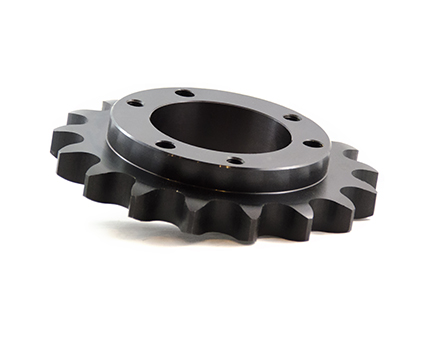

120 QD Type Roller Chain Sprockets

PLI QD-TYPE SPROCKETS

All PLI sprockets are manufactured using the ISO 9001 quality management system. PLI QD type sprockets are to be installed using PLI QD Type Bushings. They allow for easy and quick installation and removal from the shaft. The teeth will be hardened on sprockets with 21 or fewer teeth.

Download data sheet

Model Specifications

Print
Part No.PLI Sprocket No.No. of TeethDiameters OutsideDiameters PitchBushingTypeMax. BoreDimensions L1Dimensions L2Dimensions CDimensions YDimensions GDimensions XWgt. Lbs.
Part No. : 120QD12PLI Sprocket No. : 120SF12HNo. of Teeth : 12Diameters Outside : 6.5Diameters Pitch : 5.796Bushing : SFType : BMax. Bore : 2.938Dimensions L1 : 2.25Dimensions L2 : 2.25Dimensions C : 4.625Dimensions Y : 1.078Dimensions G : 0.328Dimensions X : 1.25Wgt. Lbs. : 4.7Add to cart
Part No. : 120QD13PLI Sprocket No. : 120SF13HNo. of Teeth : 13Diameters Outside : 6.9Diameters Pitch : 6.268Bushing : SFType : BMax. Bore : 2.938Dimensions L1 : 2.25Dimensions L2 : 2.25Dimensions C : 4.625Dimensions Y : 1.078Dimensions G : 0.328Dimensions X : 1.25Wgt. Lbs. : 6.1Add to cart
Part No. : 120QD14PLI Sprocket No. : 120SF14HNo. of Teeth : 14Diameters Outside : 7.47Diameters Pitch : 6.741Bushing : SFType : BMax. Bore : 2.938Dimensions L1 : 2.25Dimensions L2 : 2.25Dimensions C : 4.625Dimensions Y : 1.078Dimensions G : 0.328Dimensions X : 1.25Wgt. Lbs. : 7.4Add to cart
Part No. : 120QD15PLI Sprocket No. : 120SF15HNo. of Teeth : 15Diameters Outside : 7.96Diameters Pitch : 7.215Bushing : SFType : BMax. Bore : 2.938Dimensions L1 : 2.25Dimensions L2 : 2.25Dimensions C : 4.625Dimensions Y : 1.078Dimensions G : 0.328Dimensions X : 1.25Wgt. Lbs. : 8Add to cart
Part No. : 120QD16PLI Sprocket No. : 120E16HNo. of Teeth : 16Diameters Outside : 8.44Diameters Pitch : 7.689Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 11.2Add to cart
Part No. : 120QD17PLI Sprocket No. : 120E17HNo. of Teeth : 17Diameters Outside : 8.94Diameters Pitch : 8.163Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 13.4Add to cart
Part No. : 120QD18PLI Sprocket No. : 120E18HNo. of Teeth : 18Diameters Outside : 9.41Diameters Pitch : 8.638Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 14.8Add to cart
Part No. : 120QD19PLI Sprocket No. : 120E19HNo. of Teeth : 19Diameters Outside : 9.89Diameters Pitch : 9.113Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 16.5Add to cart
Part No. : 120QD20PLI Sprocket No. : 120E20HNo. of Teeth : 20Diameters Outside : 10.37Diameters Pitch : 9.589Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 19.2Add to cart
Part No. : 120QD21PLI Sprocket No. : 120E21HNo. of Teeth : 21Diameters Outside : 10.85Diameters Pitch : 10.064Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 19.9Add to cart
Part No. : 120QD22PLI Sprocket No. : 120E22No. of Teeth : 22Diameters Outside : 11.33Diameters Pitch : 10.54Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 21.6Add to cart
Part No. : 120QD23PLI Sprocket No. : 120E23No. of Teeth : 23Diameters Outside : 11.81Diameters Pitch : 11.016Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 23.8Add to cart
Part No. : 120QD24PLI Sprocket No. : 120E24No. of Teeth : 24Diameters Outside : 12.29Diameters Pitch : 11.492Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 25.8Add to cart
Part No. : 120QD25PLI Sprocket No. : 120E25No. of Teeth : 25Diameters Outside : 12.77Diameters Pitch : 11.968Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 28.1Add to cart
Part No. : 120QD26PLI Sprocket No. : 120E26No. of Teeth : 26Diameters Outside : 13.25Diameters Pitch : 12.444Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 29.9Add to cart
Part No. : 120QD28PLI Sprocket No. : 120E28No. of Teeth : 28Diameters Outside : 14.21Diameters Pitch : 13.397Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 34.7Add to cart
Part No. : 120QD30PLI Sprocket No. : 120E30No. of Teeth : 30Diameters Outside : 15.17Diameters Pitch : 14.35Bushing : EType : B1Max. Bore : 3.5Dimensions L1 : 2.625Dimensions L2 : 2.938Dimensions C : 6Dimensions Y : 1.563Dimensions G : 0.703Dimensions X : 1.625Wgt. Lbs. : 39.4Add to cart

1 1/2" Pitch, Nominal = 0.924"
